18x9.50-8 8" Go Kart Wheels ATV 30" Rear Axle Kit Differential Motor 36V-84V 1000W-2200W Brushless Controller for Electric UTV Drift Trike Lawn Mower Golf Cart Quad Buggy Dune Moped 4 Wheeler Tricycle

18*9.5-8 Wheel: Condition: 100% Brand New Color: Black Material: Nylon Wheel Height: 470mm/18.5 inch Wheel Width: 215mm/8.46 inch Tire Size: 18x9.50-8 Bolt Holes: 4pcs Mounting Hole To Hole Distance: 78mm/3.07 inch Max Load: 253LBS/115kg 4PR Max Inflate: 24 P.S.I (165 kpa) Operating Pressure: 10 P.S.I Tread 4 Nylon Sidewall 2 Nylon Rim 6.5 AT Nylon Tubeless Splay Pattern Not for highway service Rear Differential Axles Kit: Condition: brand new Material: metal Color: black Total length: 760mm/ 29.92 inch Two Axle: 340mm/13.39 inch with 430mm/ 16.93 inch (plz check the size picture for the dimension specification) Brushless Differential Motor: Condition: brand new Material: metal Color: black Gear Ratio: 9.5:1 Torque: 2.62Nm Rated Speed: 4800rpm Rated Voltage: 48V Rated Output: 1000W Rated Current: 18-35A Max Discharging Time : 140mins High Speed: 20mph Medium Speed: 16mph Low Speed: 10mph( under the load of 198lbs, and the weight of the bike is 154lbs) Protect Rate: IP54 Insulation Level: B Motor length: 250mm (9.84 inch) Brushless Controller: Condition: 100% Brand New Nominal Voltage: DC 36V/ 42V/ 48V/ 52V/ 58V/ 60V/ 64V/ 72V/ 84V Rated Power: 1000W-2200W Matching Motor: DC Brushless Motor Under Voltage Protection: 20V Max Current: 40A-50A Brake: Low/ high electric level Motor Phase Angle: Automatic identification Features: 18 Tube,Square Wave Size: 238 x 84 x 41mm/ 9.4 x 3.3 x 1.9 inch Rear Brake Assembly: Brand New Hydraulic Front Disc Brake Twin Calipers with Master Cylinder & Brake Pads Brake System Fit 110cc 125cc DIY Quad Bike ATV Buggy High compression hydraulic cable Come with brake pads Powersports Battery: ITEM NO: 6-DZM-12 Amperage: 12AH Voltage: 12V Weight: 3.8kg(8.36lbs) Size: 5.9"(150mm) x 3.9"(100mm) x 3.8"(98mm) Features: High Performance Battery 100% Maintenance Free Shock and Vibration Resistant Spill-Proof Design ensures high discharge rate, wide operating temperatures, long service life and deep discharge recover Can be mounted in any position Long lasting high performance in high and low temperatures Packages Includes: 1x 30" rear axle kit + 1x 48v 1000w brushless motor+1x 48v 1000w speed controller+1x brushless wiring harness+1x ignition key switch+1x 3 speed switch +1x throttle pedal +1x brake switch+ 1x charging port + 1x terminal block+1x forward reverse switch+1x power indicator+1x brake caliper +1x 25ah air switch+ 2x 4 stud hubs + 2x 18x9.50-8 wheels+ 4x 12v 12ah batteries + 1x 48v charger + 3x batteries connecting cable

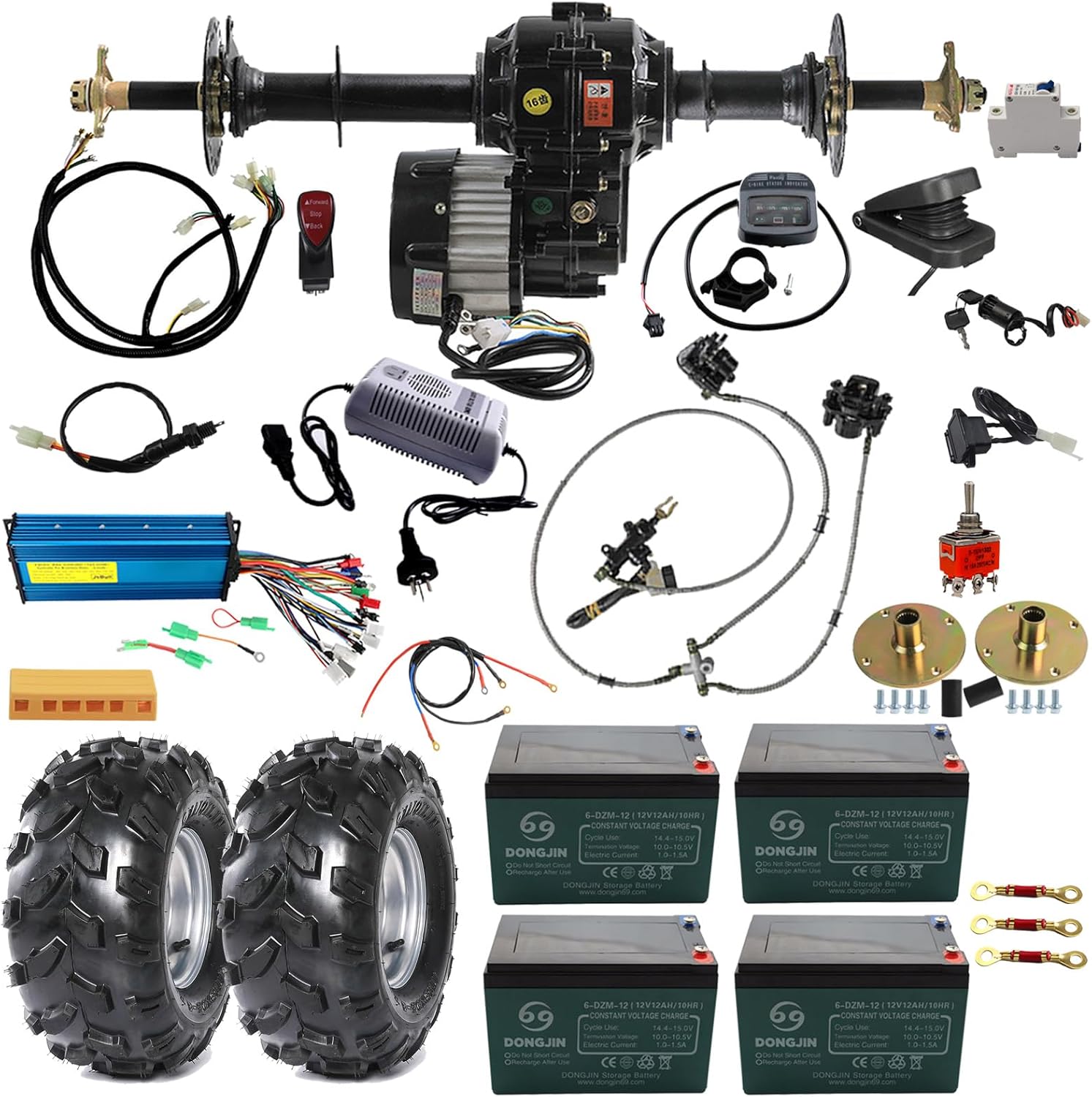

• Packages Includes: 1x 30" rear axle kit; 1x 48v 1000w brushless motor; 1x 48v 1000w speed controller; 1x brushless wiring harness; 1x ignition key switch; 1x 3 speed switch; 1x throttle pedal; 1x brake switch; 1x charging port; 1x terminal block; 1x forward reverse switch; 1x power indicator; 1x brake caliper; 1x 25ah air switch; 2x 4 stud hubs; 2x 18x9.50-8 wheels; 4x 12v 12ah batteries; 1x 48v charger; 3x batteries connecting cable
• 12V 12AH Sealed Lead Acid (SLA) Battery: Rechargeablem maintenance free battery, High discharge rate, wide operating temperatures, long service life and deep discharge recover, Can be mounted in any position, Shock and Vibration Resistant; 150 x 100 x 98 mm (5.9 x 3.9 x 3.8 inch) in size
• Heavy-Duty Performance 8" Wheel: Supports a maximum load of 253 lbs (115 kg) with a 4PR rating, max inflate of 24 PSI (165 kpa), and operating pressure of 10 PSI; Wheel height of 470mm (18.5") and width of 215mm (8.46"), with a tire size of 18x9.50-8
• 30 inch Differential Axle Kit: Made from high-strength metal, this rear differential split axles kit is built for toughness and durability to handle rugged terrains and heavy loads; With a total length of 760mm (29.92 inches); Complete Axle Kit Includes 2 rear differential split axles, brake disc, and hubs, providing all necessary components for a smooth and easy installation
• DC 48V 1000W Brushless Differential Motor Gearbox: Rated at 1000W with a torque of 2.62Nm and a speed of 4800rpm; Rated voltage of 48V with a current range of 18-35A for stable operation; Efficient Gear Ratio 9.5:1; Max discharging time of up to 140 minutes
• 36V-84V Brushless Motor Speed Controller: Supporting nominal voltages from DC 36V to 84V, rated power range of 1000W to 2200W; Under Voltage Protection 20V; Max Current 45A-60A
• Wide Application: Universal for Electric Go Kart ATV UTV Drift Trike Golf Cart Quad Buggy Dune Moped Lawn Mower Four Wheeler Tricycle Mobility Offroad Motorcycle
• Please Note: Please check out all details including size of the items before order, to make sure the item fits, thanks
