5 Way 3 Position Pneumatic Valve, 1Mpa Center Closed Foot Pedal Valve with G1/4" Port,Aluminum Alloy Raise Lower Hold at Any Height Foot Air Pressure Control Valve
Product details
| Management number | 210024016 | Release Date | 2026/04/02 | List Price | $14.80 | Model Number | 210024016 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
5 Way 3 Position Foot ValveMaterial: aluminum valve body, iron pedalOperating temperature:-20~65°Medium: clean compressed airPurpose: Control cylinder movementPressure resistance: 10kg (1.0MPA)Control method: foot pedalThread:G1/4
- 5 Way 3 Position Center Closed Pneumatic Foot Operated Pedal Valve: Foot valve 5 Way 3 Position pneumatic switch, the three gears are all foot-controlled, controlling the cylinder in, out, and stop. Aluminum alloy valve body, iron pedal.
- Features of Air Pressure Control Valve: G1/4 (DN5) internal thread installation, easy to install. Thickened stamped iron pedals, durable. The spacer valve core has better sealing performance. Cylinder control valve with arbitrary stop.

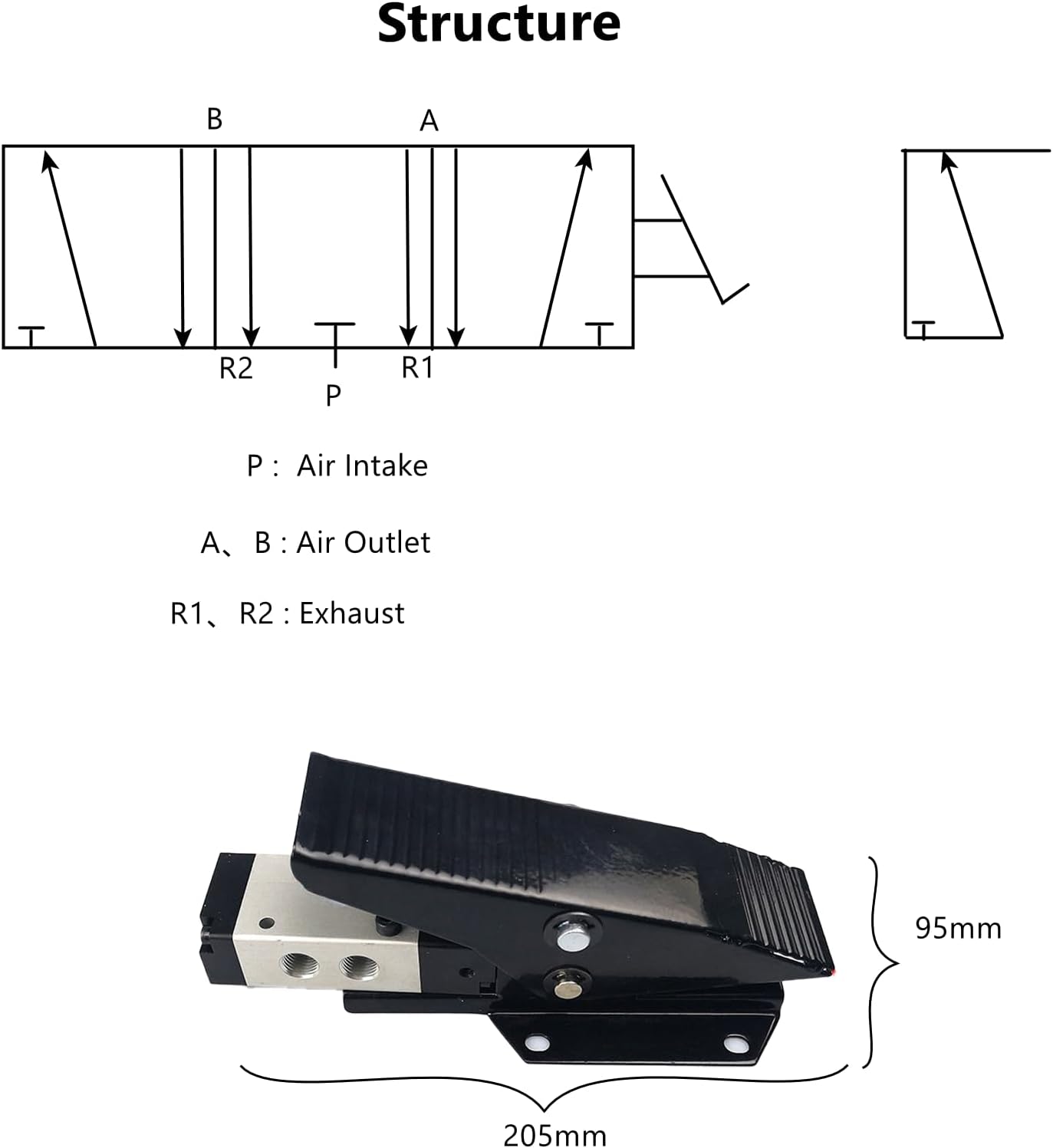

- 5 Way 3 Position Pneumatic Foot Valve Gear description: The pedal is in the lowest gear and the cylinder is retracted. When the pedal is in the middle gear, the cylinder stops and stops at any position you want. The pedal is in the highest gear and the cylinder is pushed out.
- Detailed parameters: K35R5-08 foot operated pneumatic valve, G1/4 Inch port threaded, maximum operating pressure 1Mpa (10kg), the overall material is aluminum alloy. High strength, tight sealing and long life. Comes with a mounting base, making it more secure to use your feet.
- Applicable scenarios: for lifts, for maintenance benches, for pneumatic clamps, for loading and unloading, for welding, for sandblasting, for cutting and other uses.
| Size | 87.27 cubic inches |
|---|---|
| Brand Name | LuTangous |
| Unit Count | 1.0 Count |
| Valve Type | penumatic Foot Pedal |
| Thread Size | G1/4 inches |
| Thread Type | female |
| Manufacturer | LuTangous |
| Model Number | LT-P-01 |
| Material Type | Aluminum, coated iron |
| Connector Type | G1/4" threaded |
| Item Type Name | foot valve |
| Exterior Finish | Aluminum, Coated Iron |
| Item Dimensions | 7.87 x 3.54 x 3.14 inches |
| Number of Ports | 5 |
| Maximum Pressure | 10 Bars |
| Number of Pieces | 1 |
| Included Components | value body |
| Inlet Connection Size | G1/4 Inches |
| Inlet Connection Type | female threaded |
| Outlet Connection Size | G1/4 Inches |
| Outlet Connection Type | female threaded |
