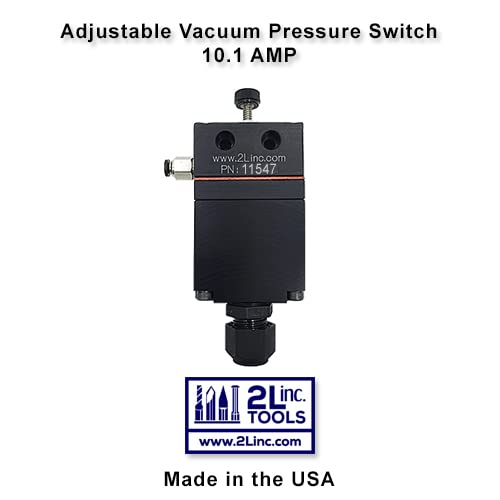

Adjustable Vacuum Pressure Switch, 10.1A, #11547, Vacuum 5-30 in Hg
Product details
| Management number | 215632972 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215632972 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

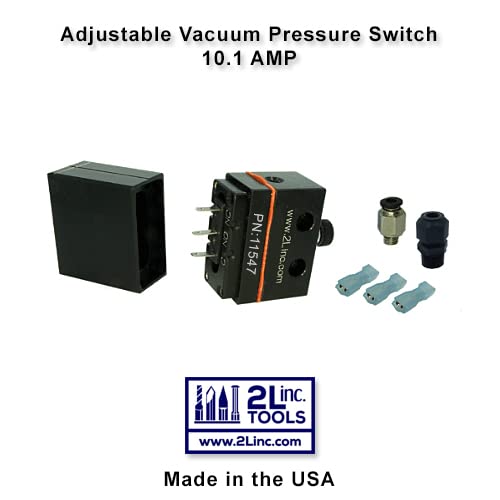

2L inc., #11547 Adjustable Vacuum Pressure Switch, 10.1A, Vacuum 5 - 30 in Hg. Made in the USA. Adjustable Vacuum Pressure Switch has both Normally Open and Normally Closed Quick Connect Terminals. Simple to adjust Vacuum Switch with one thumbscrew. Tight repeatable deadband for consistent operation. 10-32 vacuum port. Two Mounting Holes for #6 SHCS. - Includes One Push to Connect 1/8" Tubing to 10-32 Connector. - Includes Three Fully Insulated 14/16 Gauge Wire - 2.8mm (0.110") Quick Disconnect Connectors. Vacuum Range: 5 - 30 in Hg. - Hysteresis / Deadband: 0.5 in Hg. - 3.0 in Hg (Average = 1.5 in Hg). Electrical Rating : 10.1A 125-250VAC , 1/4 HP, 125 VAC. - Terminals: Quick Connect 2.8 x 0.5mm (0.110'). - Electrical Switch Approved according to EN 61058 and UL 1054. - Ambient temperature -40 to max. +100 °C. - Manufactured in house, in Hudson Massachusetts.
- Adjustable Vacuum Pressure Switch has both Normally Open and Normally Closed Quick Connect Terminals.
- Vacuum Switch is Simple to Adjust with One Thumbscrew.

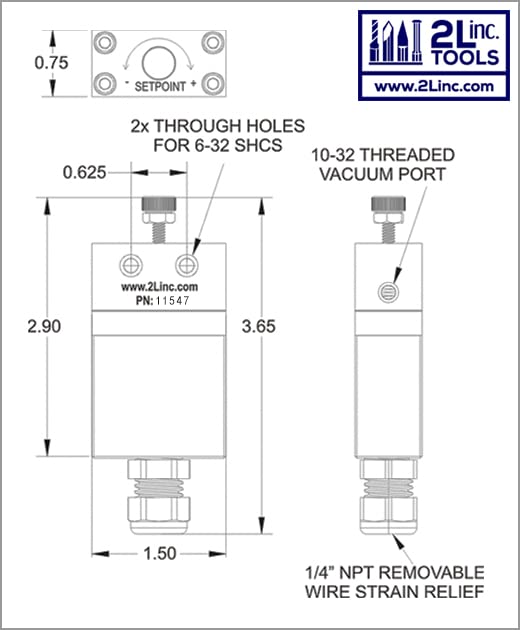

- 10-32 Vacuum Port.
- Vacuum Range: 5 - 30 in Hg.
- Electrical Rating : 10.1A 125-250VAC , 1/4 HP, 125 VAC.
| Color | Black |
|---|---|
| Wattage | 1262.5 watts |
| Terminal | Quick Connect |
| Brand Name | 2L inc. |
| Unit Count | 1.0 Count |
| Item Weight | 4 Ounces |
| Switch Type | Pressure Switch, Temperature Switch |
| Circuit Type | 2-way |
| Contact Type | Normally Open and Normally Closed |
| Manufacturer | 2L inc. - Engraving Tools, End Mills & Cutters, Vacuum Workholding |
| Actuator Type | Rotary |
| Material Type | Aluminum |
| Mounting Type | Tabletop Mount |
| Connector Type | Quick Connect |
| Control Method | Touch |
| Current Rating | 10.1 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 1 x 1 x 3 inches |
| Number of Items | 1 |
| Contact Material | Metal |
| Operating Voltage | 118 Volts |
| Specification Met | Electrical Switch Approved According to En 61058 and Ul 1054. |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
