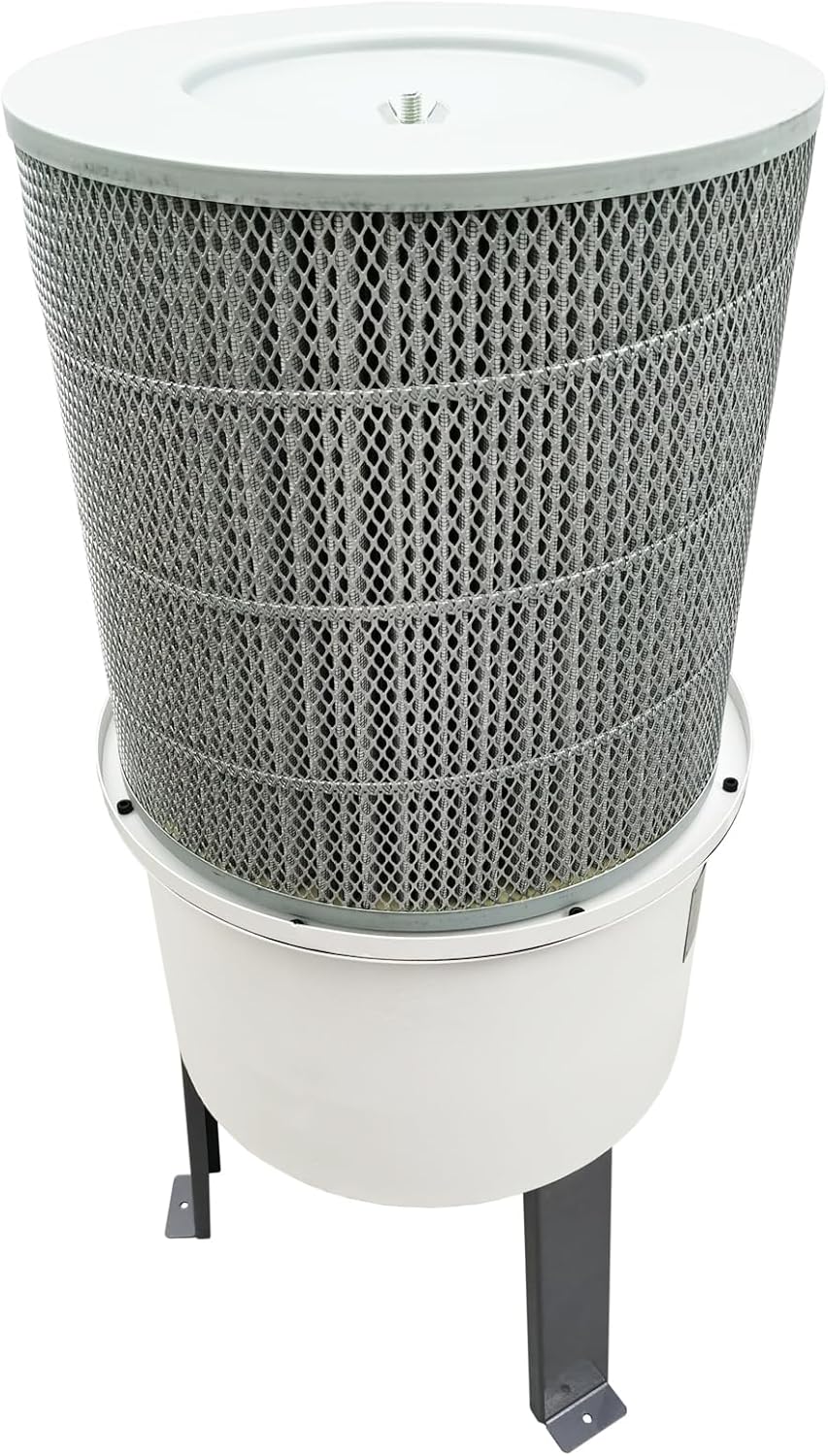

Centrifugal Oil Fume Purifier 220V 750W 3PH Oil Mist Collector CNC Machine Tool Soot Purifier 650-824CFM 4.3" Suction Caliber 2m³

Product ParametersModel: HK-75B Voltage: 220V Three-phase Power: 1HP (750W) Air volume: 650-824CFM (1100-1400m³/h) Suction caliber: 4.3" (110mm) Noise value: 62-65dbA Applicable area: 2m³ Filtration efficiency: 99%; 0.2um or more Package size:PART1: 22.8"*15.7"*19" (58cm*40cm*48cm)PART2: 18"*17.8"*17" (46cm*45cm*43cm) Net weight/Gross weight: 48.5LBS(22kg) / 55.5LBS(25.2kg)

• Good Filtration Effect: The oil fume purifier uses efficient filter element and precision air filter material, can effectively deal with oil mist, water mist, smoke and absorb particles above 0.2um. The filtration efficiency can reach 98%
• Multi-layer Purification: Adopting multi-layer high-performance filter cotton, can intercept and capture the smallest particle, improving the quality of the workshop air. The filter cotton has long service life, easy and convenient to make maintenance
• Turbine Design: The turbine design can effectively avoid dust deposition on the surface and avoid vibration problems even if there are a large number of particles
• Pure Copper Motor: The machine uses pure copper motor, high efficiency and energy saving, good heat dissipation and low noise, which can work stably for a long time. Noise value: 62-65dbA
• Application: The oil fume collector can be installed on CNC machining centers, grinding machines, lathes and other kinds of machine tools, used to quickly purify, separate and recycle oil and water mist produced by mechanical processing and resend the purified air into workshop to improve the air environment
