CHANCS 775 DIY Electric Table Saw Mini Circular Saw Cordless DC 24V 12000RPM PWM Speed Controller Output Voltage DC 9-60V
Product details
| Management number | 209998189 | Release Date | 2026/04/02 | List Price | $26.40 | Model Number | 209998189 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

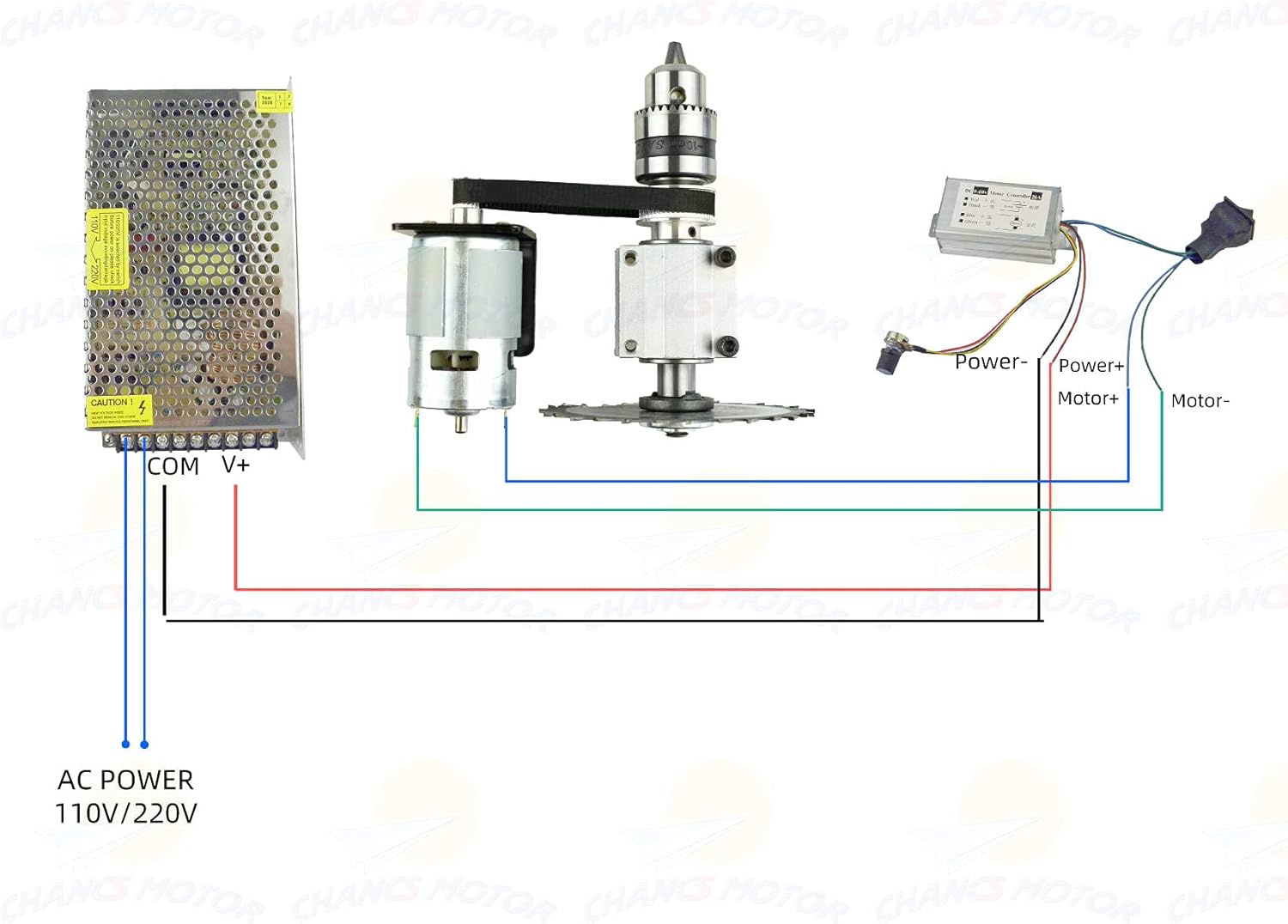

- *Attention: 1.The set can use adjustable speed power supply, or switching power supply. 2.Always disconnect the power when wiring. 3.When installing, please tighten the saw blade and screws so that the saw blade will not fly out and hurt people when the motor starts.
- Application: Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw for cutting/polishing.
- *Specifications of motor: Rated Voltage: DC 24V, Speed: 12000RPM； Starting current: 8A； Power: 280W； Motor Body Diameter: 42mm； Motor Body Length: 66.5mm； Shaft Length: 16mm； Shaft Diameter: 5mm；

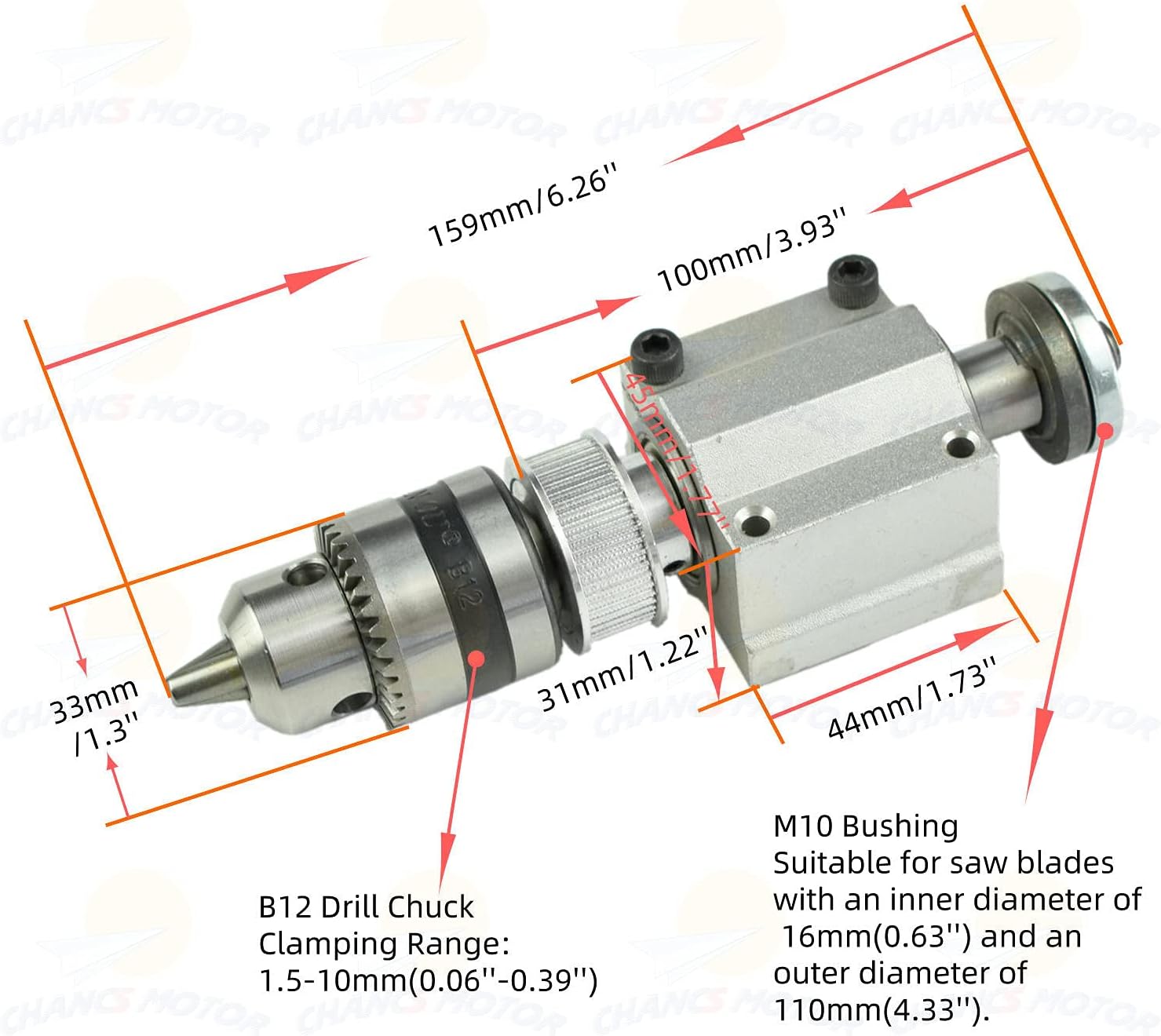

- *Slider Size： Total length: 159mm(6.26")； Mounting holes for M5 screws； M10 bush is suitable for saw blade with inner diameter 16mm（0.63"）, outer diameter 110mm(4.33"), common with angle grinder. B12 drill chuck clamping range is 1.5-10mm(0.06"-0.39").
- *Belt Pulley Size: Large pulley: 48 teeth, inner diameter 12 mm(0.47"); Small pulley: 16 teeth, inner diameter 5 mm(0.2"); Timing belt circumference: 240mm(9.45").
| Model | 7775 Motor |
|---|---|
| Speed | 12000 RPM |
| Voltage | 24 Volts |
| Brand Name | CHANCS |
| Item Weight | 1.34 Kilograms |
| Manufacturer | CHANCS MOTOR |
| Included Components | NO |
