| Management number | 212208613 | Release Date | 2026/04/06 | List Price | $27.56 | Model Number | 212208613 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

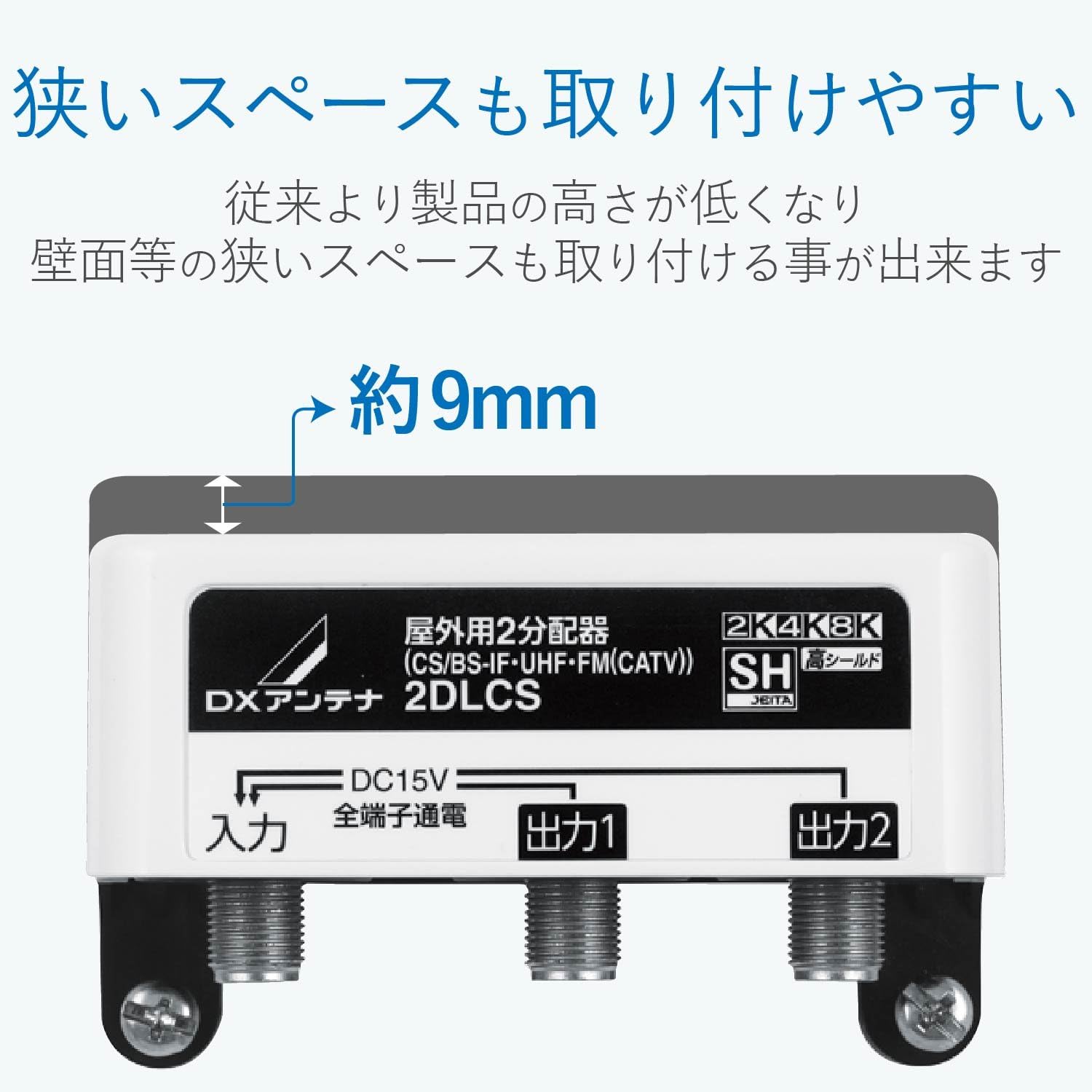

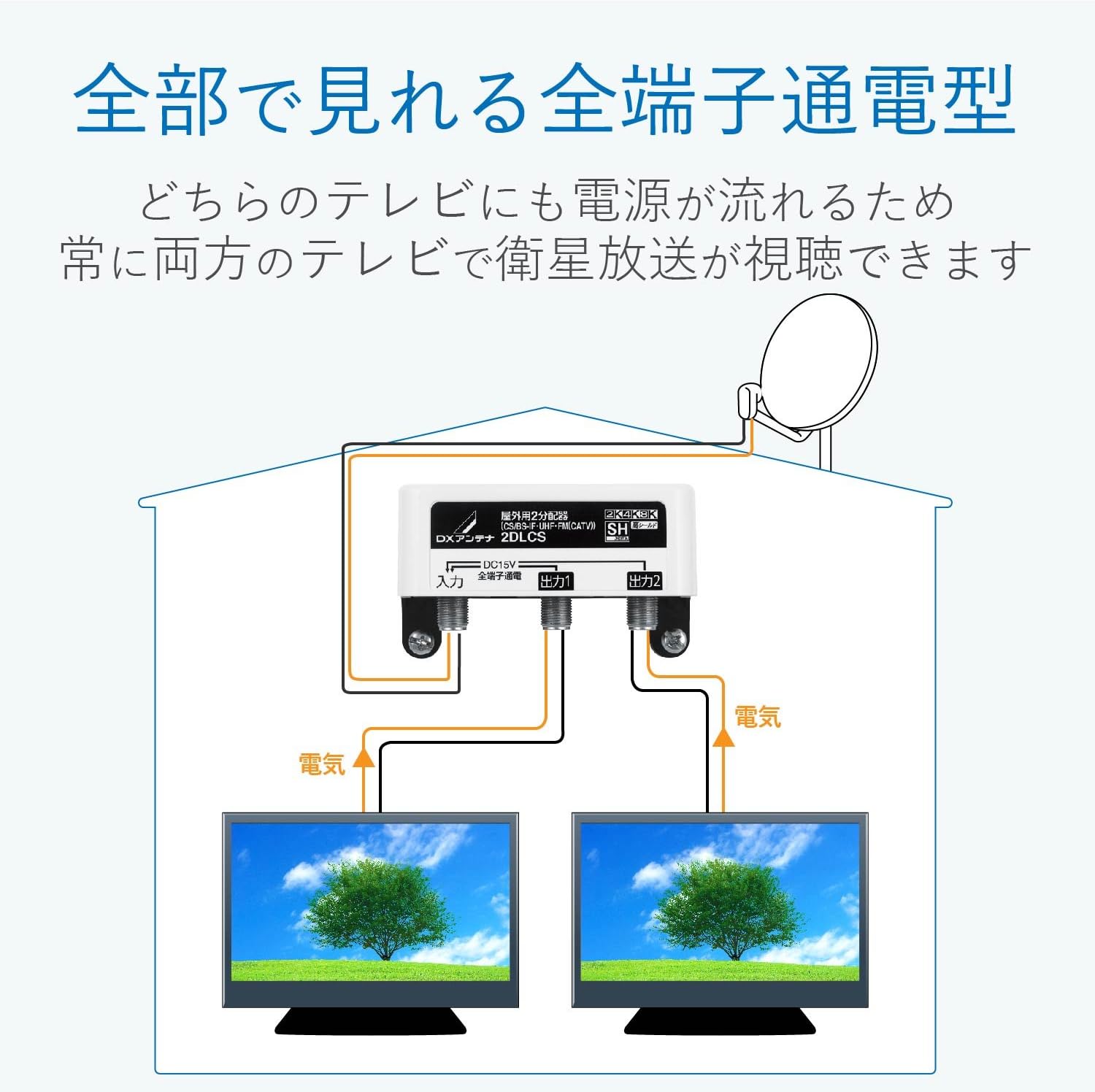

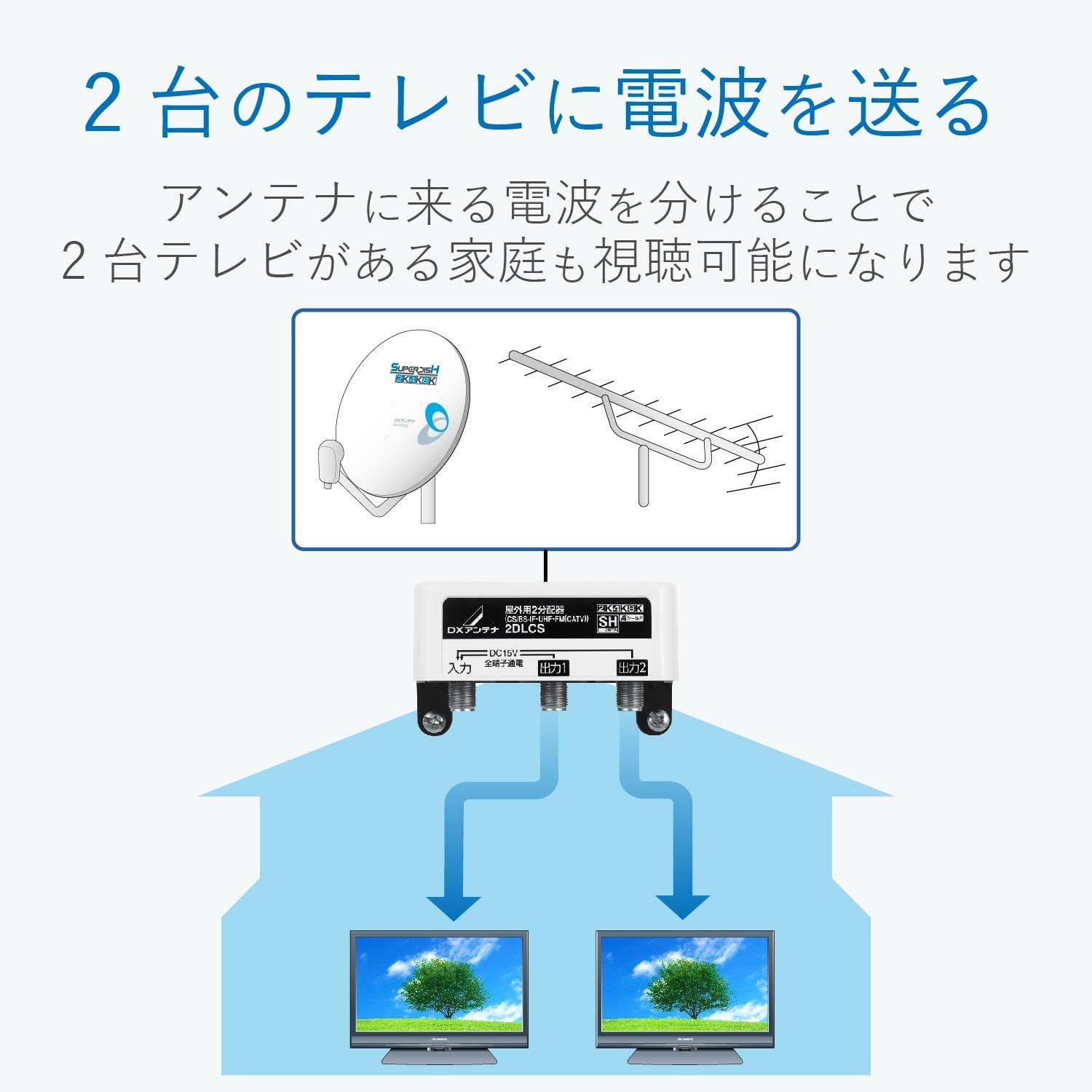

Specifications: ■ Frequency band: 10~3224MHz ■ Specifications: Outdoor 2 Splitter ■ Input and Output Terminal: F-type terminal ■ Power transmission function: DC 15 V and less than 0.8 A ■ Construction: Die-cast shield case, rainproof resin cover ■ External dimensions: 2.0 x 3.4 x 1.9 inches (51 x 87 x 47.6 mm) (main unit) ■ Weight: 0.17 kg ■ Compatible mast diameter: 0.9 - 1.9 inches (22 - 49 mm) ■ Accessories: F-5 fittings x 3, waterproof cap x 3. 【Description】 ■ 2 Splitter for home use with satellite broadcasts. ■ Satellite broadcasting bands are not only compatible with BS, 110 degree CS (2K) broadcasting of BS, 110 degree CS satellites, but also 4K and 8K broadcast. ■ All output terminals and input terminals are connected, so you can supply power to boosters and antennas from any system. ■ The mast is installed with a single nut to greatly reduce the hassle and time of installation. ■ The inside of the resin case is made of high shielded die-cast construction to prevent radio leakage. Prevents radio interference with other radio services. ■ DX antenna flat antenna can be installed neatly on the back of UAH201/261 series. ■ Includes 3 F-5 faucets and 3 waterproof caps
| Item Weight | 5.1 ounces |
|---|---|
| Manufacturer | DXアンテナ |
| Item model number | 2DLCS(B) |
| Package Dimensions | 6.69 x 4.72 x 1.97 inches |
| Is Discontinued By Manufacturer | No |
