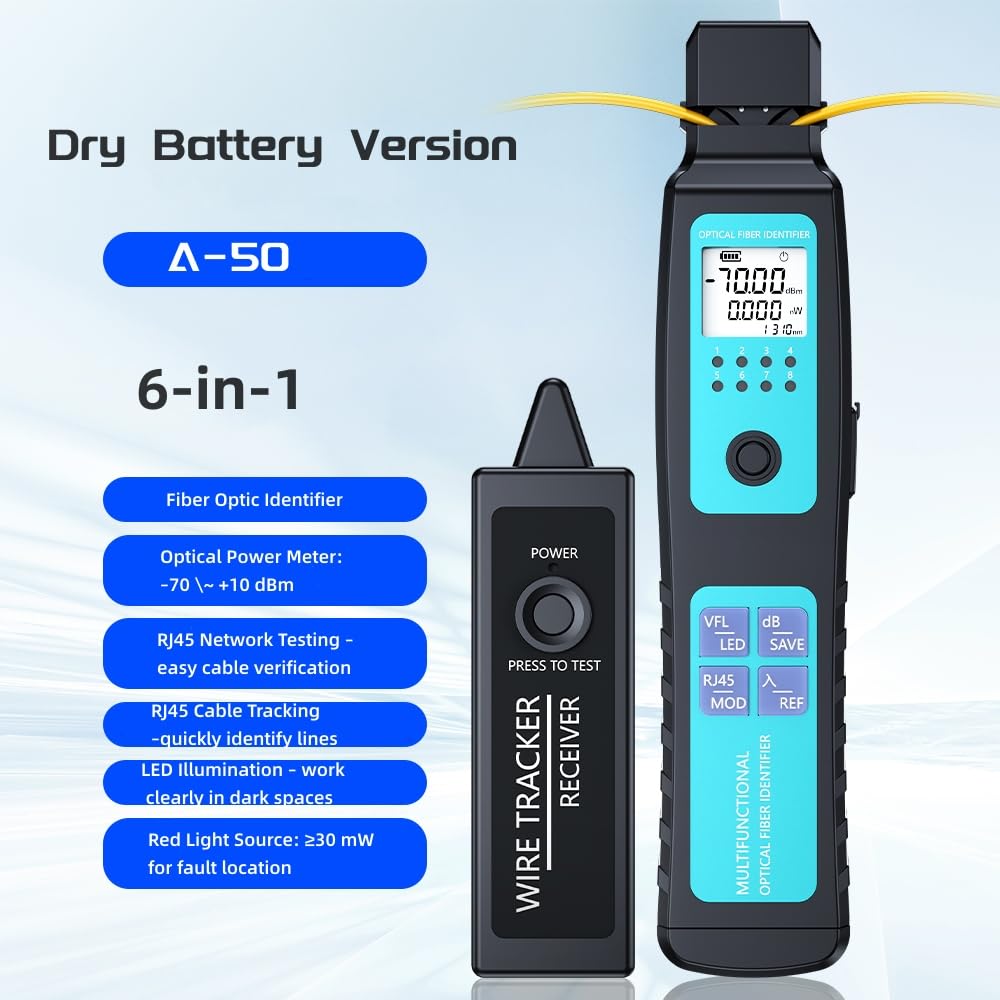

Fiber Optic Identifier & Power Meter Combo - 800-1700nm Live Fiber Detector with ≤5m Class IIa, 40dBm to +10dBm Range,RJ45 Cable Tester- FTTH/OTDR Testing Tool for Network Installation & Maintenance

Professional Fiber Optic Identifier - Non-Destructive Cable Testing Tool with Visual Direction Detection Non-Destructive Microbending Technology Safely identifies live fibers without cutting or damaging cables microbending detection preserves fiber integrity Works on 250μm/900μm/2mm/3mm fiber types Intelligent Direction Detection LED indicators show real-time signal direction (left/right) Detects 270Hz/1KHz/2KHz tone signals for precise fiber tracing Identifies specific fibers in crowded panels within seconds All-in-One Testing Capabilities Built-in ≤5m Class IIa VFL Integrated optical power meter (-70dBm to +10dBm) Tests 10 wavelengths: 850/980/1270/1300/1310/1490/1550/1557/1625/1650nm Universal Compatibility No adapter needed - works with SC/FC/ST connectors RJ45 line hunting function for hybrid fiber-copper networks Clear LED display shows power levels & tone information Field-Ready Design Ultra-lightweight (170g) Compact 243×50×50mm size Technical Specifications Detection Method: Microbending (non-destructive) Tone Frequencies: 270Hz/1KHz/2KHz VFL Power:≤5m Class IIa VFL Power Meter Range: -70dBm to +10dBm Connectors: Universal 2.5mm (SC/FC/ST) Fiber Compatibility: 250μm/900μm/2mm/3mm Dimensions: 243×50×50mm Weight: 170g Professional Applications ✔ Telecom fiber network maintenance ✔ Data center cable management ✔ FTTH/FTTX installation & troubleshooting ✔ Enterprise network upgrades ✔ Cable TV system verification Package Includes 1× Fiber Optic Identifier 1× Protective Carrying Case 1× User Manual Why Choose Our Identifier? Only tool with non-destructive microbending detection Faster than traditional identification methods More accurate with dual-direction LED indicators More versatile with RJ45 line testing capability Lifetime technical support included

• All-in-One Fiber Optic Diagnostic Tool： Combines live fiber identifier, ≤5m Class IIa VFL , and optical power meter (-70dBm to +10dBm). Detects signal direction/power and identifies tones (270Hz/1KHz/2KHz) for fast fiber tracing in crowded panels.
• Smart RJ45 Network Line Testing： Added RJ45 line hunting function for copper/network cable verification—ideal for hybrid fiber-copper installations or troubleshooting FTTH/FTTX networks.
• Universal Fiber Compatibility： No-adapter design works with 250μm/900μm/2mm/3mm fibers and 2.5mm universal connectors (SC/FC/ST). Tests 10 wavelengths (850/980/1270/1300/1310/1490/1550/1625/1650nm) for multi-application use.
• Field-Ready Portability： Ultra-lightweight (170g) with clear LED screen and compact 243×50×50mm body. Built for OTDR crews, data center techs, and telecom installers who need on-the-go precision.
• Lifetime Support Guarantee： Includes 24/7 customer service + detailed user manual. Bonus: Protective carrying pouch included.
