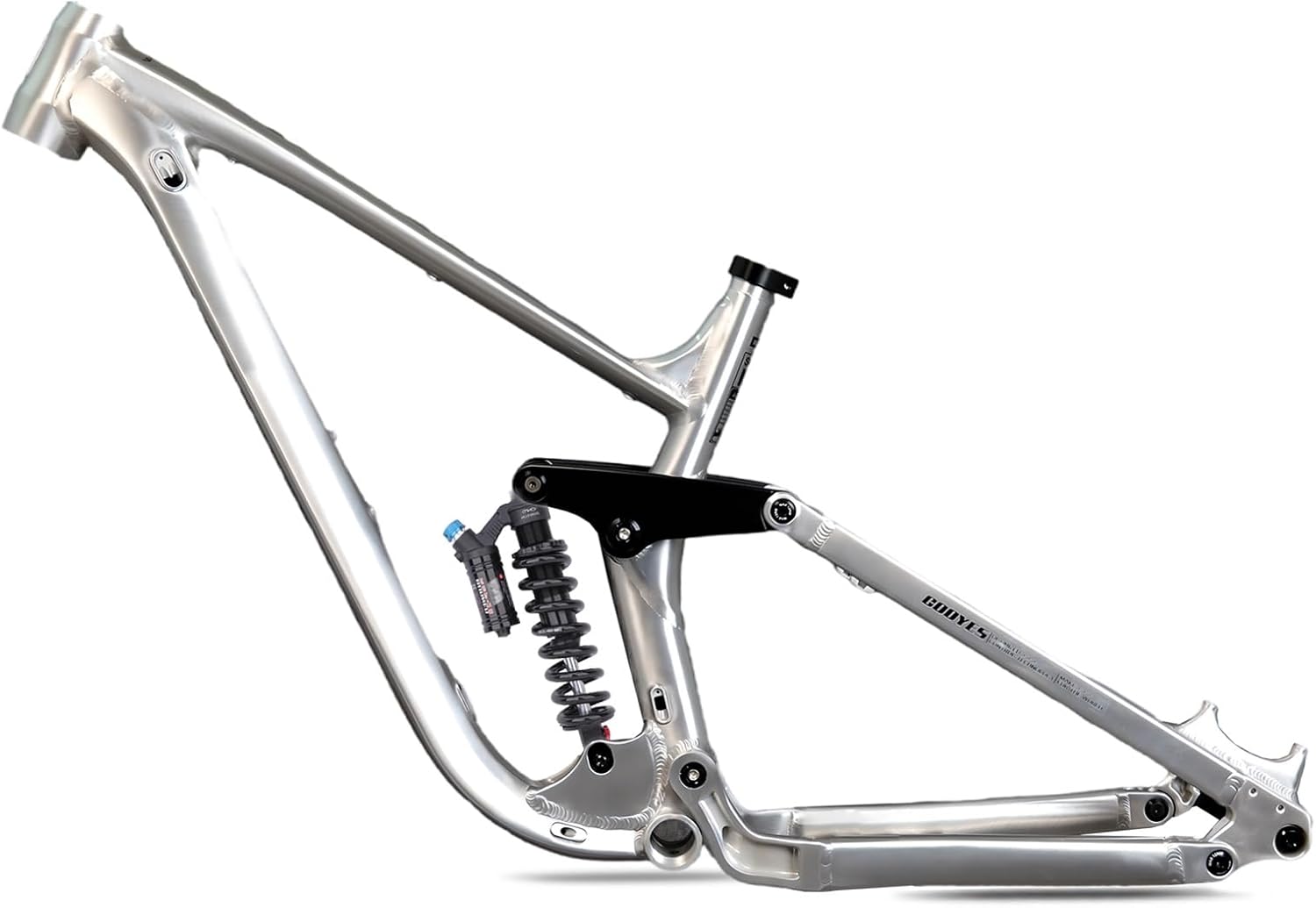

Full Suspension Mountain Bike Frame with Shock Absorber 27.5er 29er Aluminium Alloy Disc Brake Bike Frame 15.5"/17"/18" DH/AM Softtail Frame 12x148mm Thru Axle Boost Frame(Black,27.5x18'')
Product details
| Management number | 214492919 | Release Date | 2026/04/12 | List Price | $295.10 | Model Number | 214492919 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
27.5er 29er Full suspension Mountain Bike Frame 15.5''/17''/18'' Aluminum Alloy DH XC AM Softtail Bike Frame 12 * 148mm Thru Axle Disc Brake Frame with Rear ShocksBikes frame Size:Frame higth：15.5",17",18"Material: Aluminum AlloyHeadset: 44*55mmSeatpost: 30.9mmSeatpost Clamp: 34.9mmBOOST thru-axle: 12*148mm( 142mm thru-axle can be installed with adapter )Bottom Brackets: BSA BB73mmBrake: A-pillar disc brake, PM 75mm, Directly mounted with 180mm disc brake rotor, 203mm requires an adapter seat.Rear wheel travel: 155mmbike forks travel: 160mm（Supports Straight Tube or Tapered Tube forks）Shock absorber: 210*55mm (oil spring or air pressure); 216*63mm(air pressure)Bushing: 32-22mmChainring: 30/32/34T(Max 34T)Compatible chain guide: 05 specificationCable : external routing/internal routing（Internal and external routing are available）For wheel：27.5''/29" wheelsMaximum tire width: 29*2.5"(27.5*2.8")Weight: about 3750gLevel: DH/AM/ENDURO210mm Oil Spring Rear Shock Absorber:Eye to Eye: 210mm × 61mm Travel (8.27×2.4in)Damper shaft：Hard chromed shock Ø 12 mm ( 0.47 inch ) shaftSpring: Coil SpringIntended use: AM FR DHTravel: 54±2mmSpring Rate: 550lbsMaterial: 7075 Aluminum AlloyWeight: 929g=2.05lbsAdjustments: Rebound / Compression / Preload / Adjust High Pressure/ Big impactPackage: Frame Rear Thru axle leverheadset Seatpost Clamp Derailleur Hanger Cable ClipRear Shock AbsorberNote:1. Please allow slight dimensional tolerances due to manual measurements, lighting in photography may cause color differences from real life.2. Please double check the size details in our list according to your actual situation to make sure you buy the right bikes frame.3. If you have any product and service questions, please contact us and we will get back to you within 24 hours.
- Downhill Mountain bike Frame: Height 15.5"/17"/18" . 27.5/29er DH/AM soft tail frame. Popular among riders.The frame weight about 3750g.
- Full suspension Bike Frame: Supporting 44-55mm headset, Seatpost 30.9mm, Seatpost Clamp 34.9mm, threaded bottom bracket BSA BB73mm. Rear wheel travel 155mm, Fit for bike forks travel 160mm.

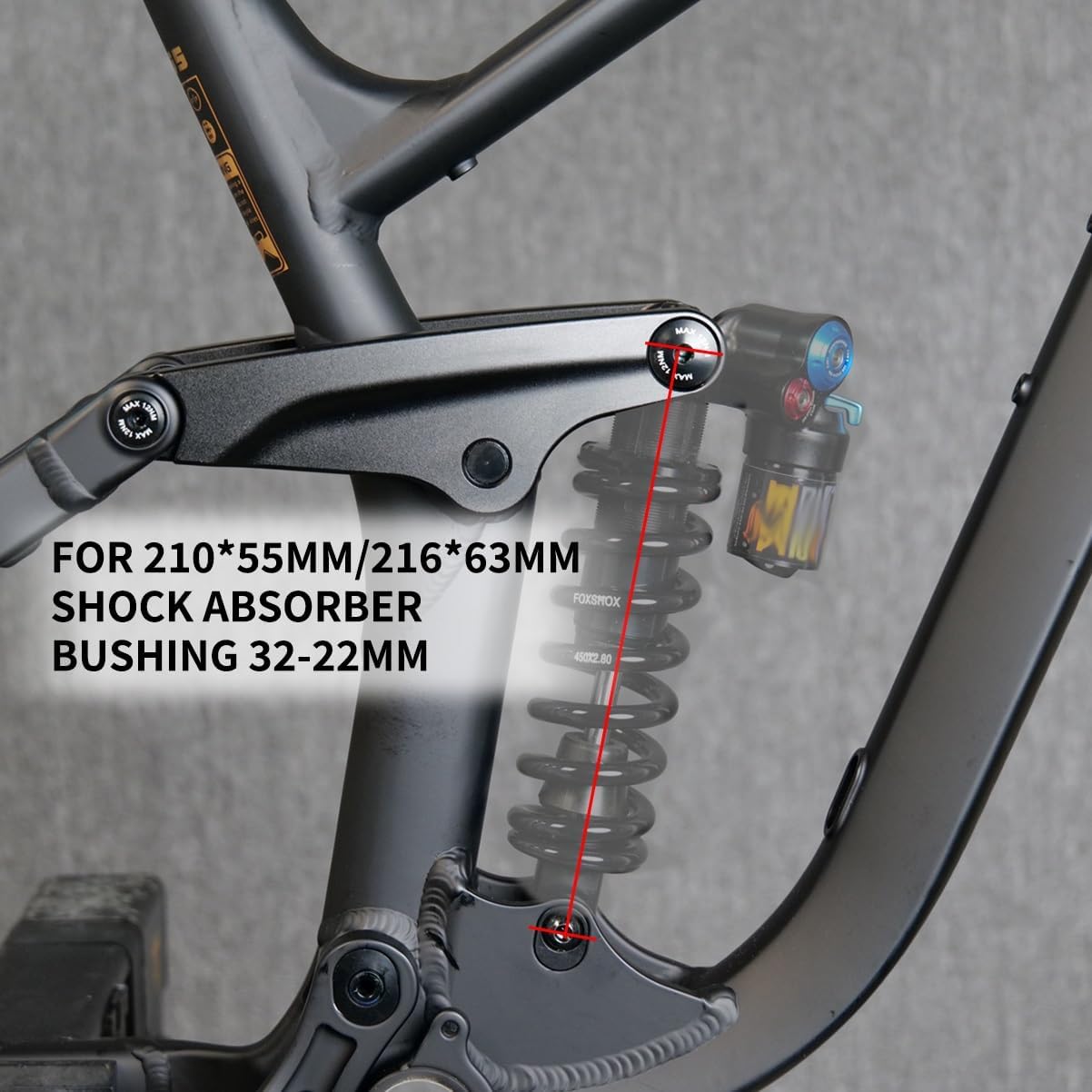

- Rear Shock Absorber: 210mm Oil Spring Shock Absorber. Eye to Eye:210mm × 61mm Travel (8.27×2.4in). Damper shaft：Hard chromed shock Ø 12 mm ( 0.47 inch ) shaft, Spring: Coil Spring, Intended use: AM FR DH. Weight: 929g=2.05lbs, Travel: 54±2mm, Spring Rate: 550lbs. Adjustments: Rebound / Compression / Preload / Adjust High Pressure/Big impact.

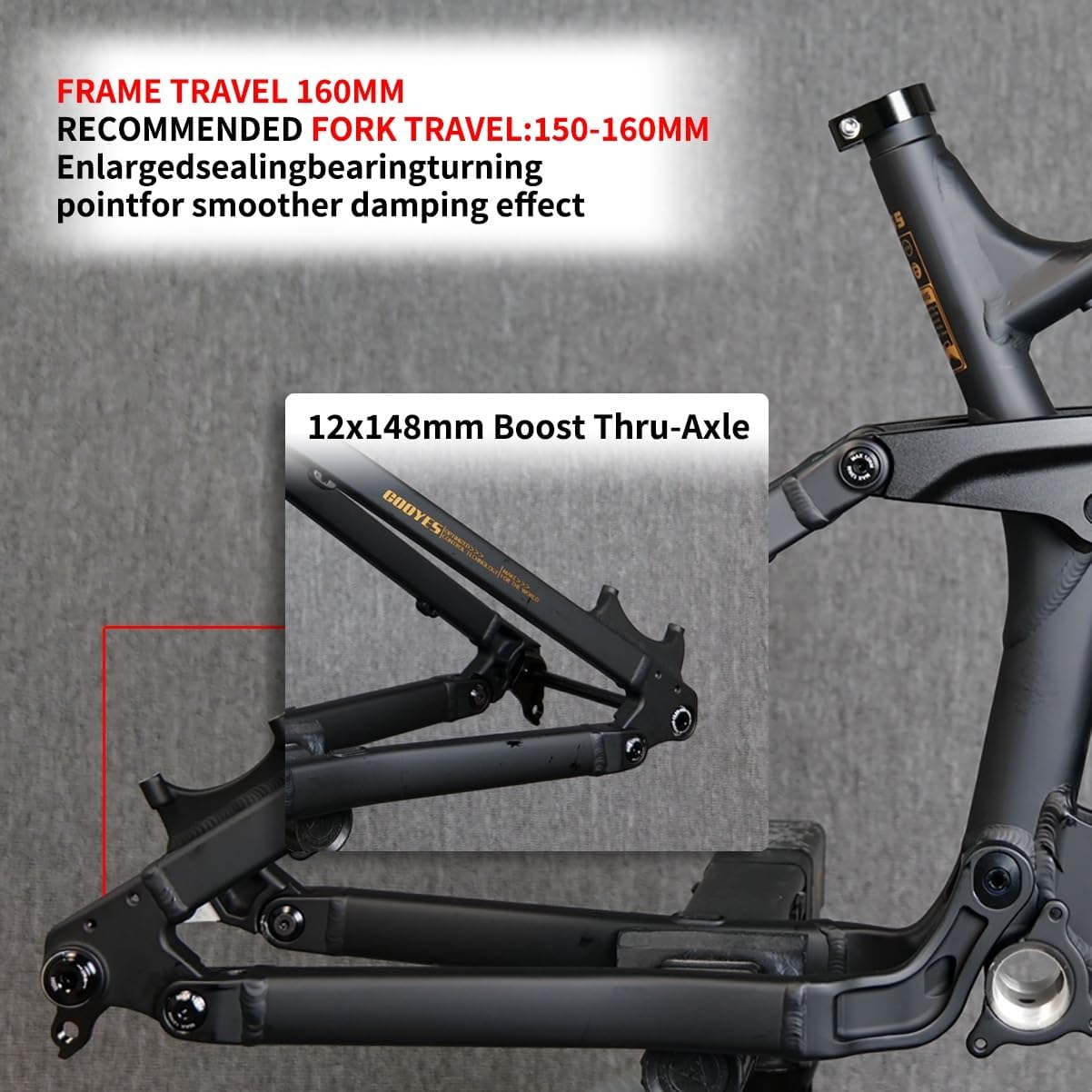

- Disc Brake Frame: DH/AM/ENDURO bike frame disc brake A-Pillar 75mm,Directly mounted with 180mm disc brake rotor. 12*148mm BOOST Thru Axle, can fit outer tire max width 27.5*2.8", 29*2.5".
- Aluminum Alloy Frame: High-strength aluminum alloy material, fish scale welding process, Lightweight aluminum alloy has good welding performance,so that the frame has a high strength.Package Includes frame (Shock absorber not included), Rear Thru axle lever, headset, Seatpost Clamp, Derailleur Hanger and Cable Clip.
| Item Weight | 11.02 pounds |
|---|---|
| Manufacturer | YFGSFWTS001 |
| Item model number | YFGSFWTS |
| Batteries required | No |
| Package Dimensions | 41.34 x 21.65 x 9.84 inches |
