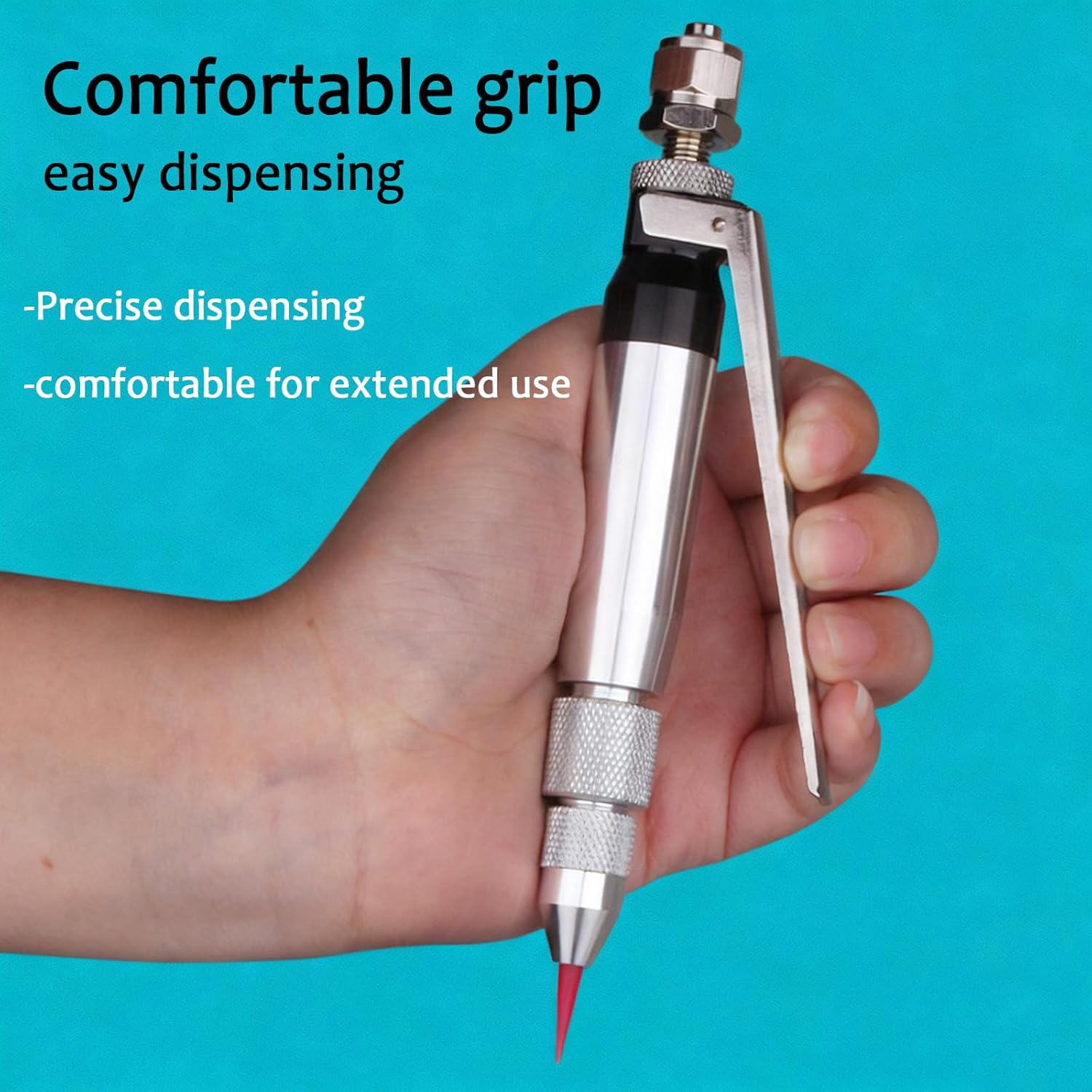

Manual Pneumatic Glue Pen for UV Adhesive, Grease & Ink - 4mm Nozzle Dispensing Valve Handles Viscosity 1-100,000 CPS at 4-7 Kgf/cm² Air Pressure

SpecificationsProduct Name: Manual Glue PenType: Pin TypeMain Material: Aluminum Alloy (Anodized)Operating Viscosity: 1-100,000 cpsGlue Volume Adjustment: Fine-tuning nutMinimum Dispensing Volume: 0.01mlInlet Diameter: 4mmApplicable Fluids: UV glue, white glue, lubricating grease, ink, and other single-component liquidsWorking Air Pressure: 4-7 kgf/cm²<;300/minDimensions: Length 150mm * 19mm<;10kgWeight: 150gUsage: Pressure tankDispensing Diameter: 2.5mmPackaging List: Manual Glue Pen *1

• 1. Quick-Connect & Leak-Free Design：Features a thimble-type dispensing valve with a detachable interface for rapid, secure docking to 4mm needles. Its strong locking mechanism prevents accidental detachment, eliminating spills and drips for clean, reliable operation with pneumatic systems and controllers.
• 2. High-Precision Dispensing Control：Equipped with a fine-tuning nut for micro-adjustments as precise as 0.01ml per dot, with speeds up to 300 dots per minute. Supports semi-automatic, timed, and manual modes to ensure consistent, repeatable results in electronics assembly and precision adhesive applications.
• 3. Durable Corrosion-Resistant Build：Constructed from robust aluminum alloy for corrosion resistance and long-term durability. The sturdy body ensures stable fluid output and reliable performance even in demanding environments such as soldering stations or adhesive-intensive workflows.
• 4. Wide Material & Industry Compatibility：Handles a broad range of fluids including UV adhesives, sealants, solder paste, lubricating grease, and inks, with a viscosity range of 1–100,000 cps. Ideal for applications in electronics manufacturing, jewelry making, hardware assembly, and stationery production.
• 5. User-Friendly & Universally Compatible：Designed with standardized ports to fit most dispensing equipment. The adjustable control nut enables precise glue management, while multiple operating modes (auto/manual) make it easy to use in laboratories, workshops, and production settings.
